VP-332: BI-DIRECTIONAL FORMAT REPEATERTER

CONNECT ALL OF YOUR FIREWIRE™ DEVICES

1394 is an IEEE designation for a high performance serial data bus. This
serial bus defines both a back plane physical layer and a point-to-point
cable-connected virtual bus. This cable version supports data transfer rates
up to 100, 200 and 400 Mbps.

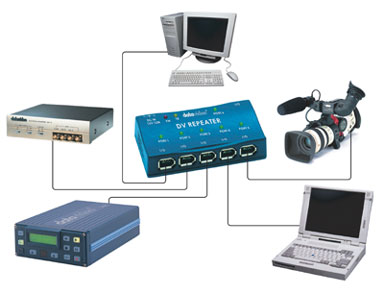

Capable of Working with Up To 63 Cascaded FireWire™ Devices!

FEATURES

• Supports IEEE 1394-1995 Standard and the P1394a Supplement for
  High performance Serial Bus
• Six P1394a Fully Compliant Cable Ports at 100/200/400 Megabits
  per Second (Mbits/s).
• Fully Interoperable with the FireWire™ and iLINK™ Implementation of
  IEEE Standard 1394.
• Self-Powered or Cable-Powered mode.
• Plug and Play compatible.
• Asynchronous and isochronous data transfers.
• Works with PC Windows 98/SE/ME/XP/2000 systems and iMac systems
  IEEE1394 interface external expansion.

DATA SPECIFICATIONS

Unit Dimensions
(WidthxDepthxHeight) 98x52x18 mm

Net Weight
70 grams

• Pocket size IEEE 1394 format repeater.
• Provides 6 x IEEE 1394 ports at 100/200/400Mbps.
• Self-power and bus power auto switch function.
• External Power Supply 12 VDC, 1.0A (included).
• Supports Hot Plug and plug-and-play functions.
• Supports up to 63 devices cascaded.
• Provides software control of interrupt events.
• Over-current detection and protection of each port.
• Compliant with IEEE Standard 1394, 1394a.
• Bus-power LED indicators.
