DN-100 (DV-BANK): HARD DRIVE RECORDER

EASY AND DEPENDABLE DV VIDEO DISK RECORDING AND PLAYBACK

Easy and Dependable DV Video Disk Recording and Playback. The DV Bank
is an instant on, easy to use, disk based, stand-alone reliable, video
recorder/player for capture or playback of industry standard FireWire DV
video.

Every DV Bank is specially formatted and has a self-contained processor
optimized for storing video streams. A 60 Gigabyte hard drive (4.5 hours)
or 120 GH HDD (9.0 hours) is available.

VTR–style controls with large, illuminated buttons and a two line, back lit
LCD display let the user select play, record, rewind, fast forward, fast
reverse, pause, frame advance, file selection, file delete and loop play.

Its FireWire (IEEE-1394) interface allows direct capture from digital cam-
corders, other digital VTR's, analog VTR's with a converter or DV mixers.

Other features include seamless repeat loop play (for trade shows),
variable speed forward or reverse play and play one frame at a time
forward or reverse. DV Banks' accessories add utility to the obvious
advantages of a disk recorder.

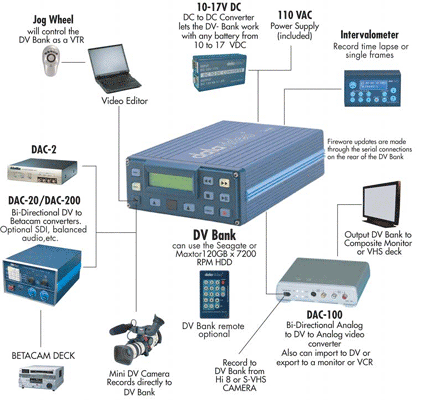

DIAGRAM

Back to Top

SPECIFICATIONS

Unit Dimensions
(WidthxDepthxHeight) 170x254x70 mm

Net Weight
2.0 kg

General
NTSC or PAL models

Power Supply
AC Input AC 100-240 V, 50/60 Hz
DC Input with optional adapter 10-17 V

Accessories
Infrared Remote included.

Back to Top

KACHINK!

Save money
:: on tape by recording direct to disk with a reliable disk system
:: on time by selecting only the footage that you need with our fast edit
EZ cut software.
:: on hardware - one little portable deck can work with your DV camera or
NLE and with accessories an intervalometer, and any 12 V battery.

Save time
:: Unitized recorder – no accessory hard drives to format or maintain.
:: The repeating video loop feature is perfect for trade show playback.
:: Print to DV Bank and take it to your client for presentation.
:: Reliable uploading to your NLE of clips as short as a few frames or as
long as several hours.

Innovative Uses
In addition to in-studio, post-production and location use, DV Bank
technology enables a wide variety of other innovative and valuable
applications for a broad spectrum of industries and markets.

Here's just a few examples of how DV Bank is being used outside
of the DV video production facility:
Medical - Programmed Recording
Scientific - Time Lapse
Surveillance - Time lapse, Traffic Analysis
Entertainment - DVD Playback, Historical and Nostalgia, Educational,
Museum Kiosks, Training Aids

Marketing & Sales
In-store Displays, Trade Show Booths, Customer Inquiries, Logistics &
Production, Directories Assembly Instructions, Technical and Reference
Manuals

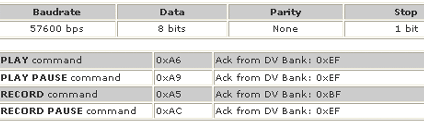

RS - 232 PROTOCOL (requires RS-22 download cable)
